Product Features

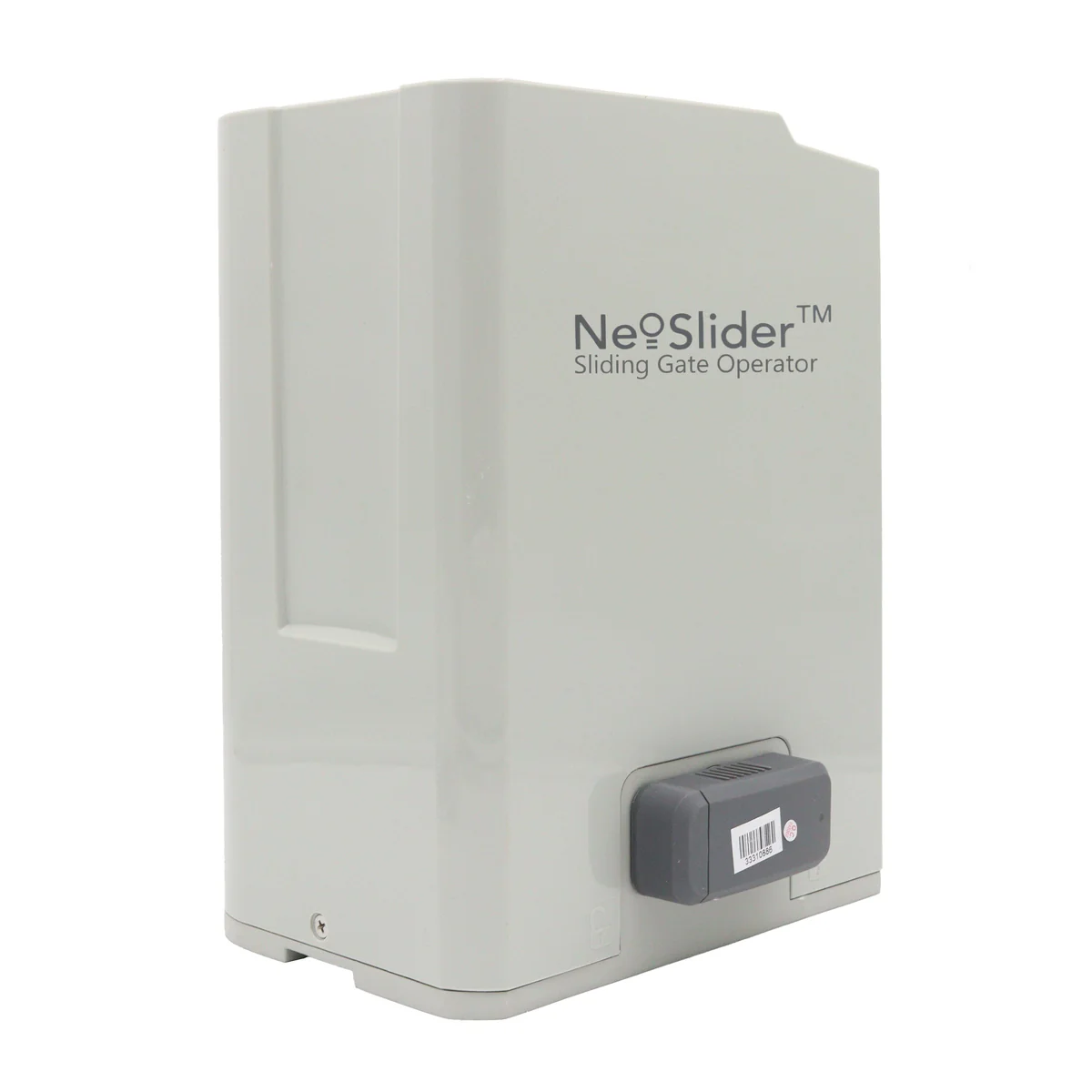

| NeoSlider500 | NeoSlider800 | |
| ATA Part # | 60196 | 60198 |
| ATA Part # SmartSolar™ Kit including single gate opener and SmartSolar™ accessories | 90756 | 90757 |
| Kit Type | Residential | Residential |
| Maximum gate weight | Up to 500 kg | Up to 800 kg |
| Maximum gate width | 6m | 8m |
| Driving force | 280 N | 700 N |
| Power Supply Voltage | 230 – 240 Vac 50Hz | 230 – 240 Vac 50Hz |
| Standby power | 2.8W | 2.8W |
| Travel speed | 0.2m / second | 0.15m / second |
| Operating ambient temperature | -20° to +50°C | -20° to +50°C |
| Dimensions (w x h x d) | 275mm H x 250mm W x 170mm D | 275mm H x 250mm W x 170mm D |
| Weather resistance rating | IP44 | IP44 |
| Motor type | 24 DC Permanent Magnet | 24 DC Permanent Magnet |
| Limit switch type | Mechanical | Mechanical |
| Type of pinion | M4-T14 | M4-T14 |
| No. of Safety Beam Inputs | 2 | 2 |
| Transmitter storage capacity | 30 x 4 button Transmitter | 30 x 4 button Transmitter |
| Smart Phone Control Enabled | Yes | Yes |
| Warranty | 2 years / 5,000 cycles | 2 years / 5,000 cycles |
